Sliding Door Series –New Ruidi automatic door
PRODUCT FEATURES
◇It is equipped with new technology motor, improved motor structure, optimized gear unit design and further reduced noise;
◇The controller program is optimized to match the new motor design for smooth operation;
◇The high-strength polyurethane pulley is used for lower rolling friction noise;
◇It is equipped with newly developed sensors.
◇The controller program is optimized to match the new motor design for smooth operation;
◇The high-strength polyurethane pulley is used for lower rolling friction noise;
◇It is equipped with newly developed sensors.
ADVANTAGE
♦High safety, easy to install, stable and reliable
♦ Rich functions
♦ Silent design
♦ Long service life
♦ Rich functions
♦ Silent design
♦ Long service life
| PRODUCT PARAMETERS | ||||
| Flush type | Single open | Double open | Single open | Double open |
| Door weight | Below 120kg | Below 120kg × 2 pieces | Below 150kg | Below 150kg × 2 pieces |
| Door width | DW=600-1250mm | |||
| Installation method | Surface mounted
/Concealed |
Surface mounted
/Concealed |
Surface mounted
/Concealed |
Surface mounted
/Concealed |
| Opening speed | 16-44cm/s (remote control adjustable) | 14-30cm/s (remote control adjustable) | 14-41cm/s (remote control adjustable) | 14-34cm/s (remote control adjustable) |
| Closing speed | 11-40cm/s (remote control adjustable) | 10-29cm/s (remote control adjustable) | 10-39cm/s (remote control adjustable) | 10-34cm/s (remote control adjustable) |
| Opening time | 0-9 s | |||
| Manual opening force during power failure | 44N (4.5kgf) | 47N (4.8kgf) | 27.1N (2.8kgf) | 38.2N (3.9kgf) |
| Ambient temperature | -20°C – +50°C | |||
| Voltage | AC200-250V 50/60Hz | |||

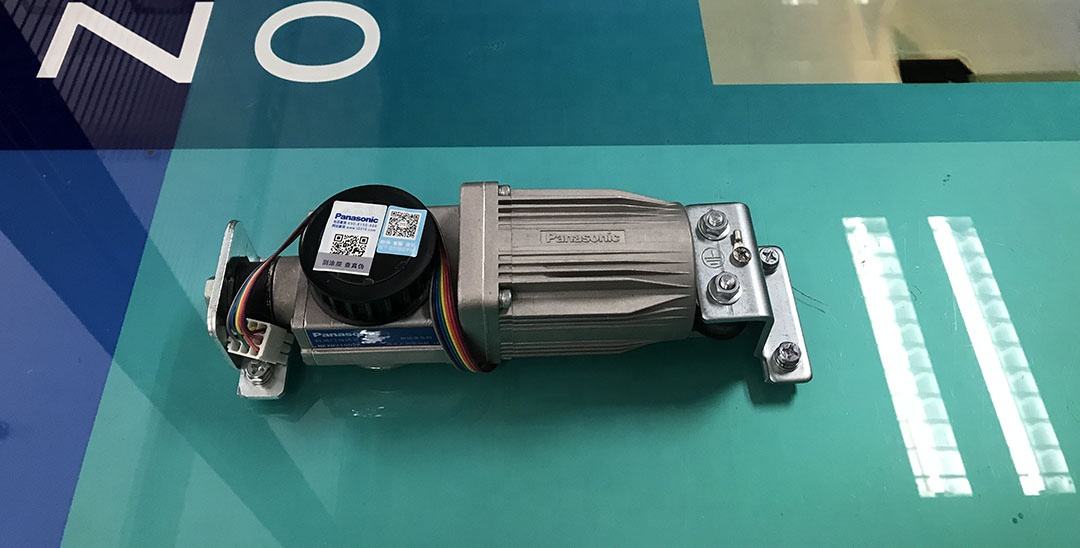

Motor module
The DC brushless motor with small volume and high power is used to decelerate with the help of high-speed gearbox system with high transmission efficiency and low noise, and then drive the belt. A safety device is provided inside, which can operate without problems for a long time even if opened and closed frequently. The motor drive pulley is made of metal and is free of repair.

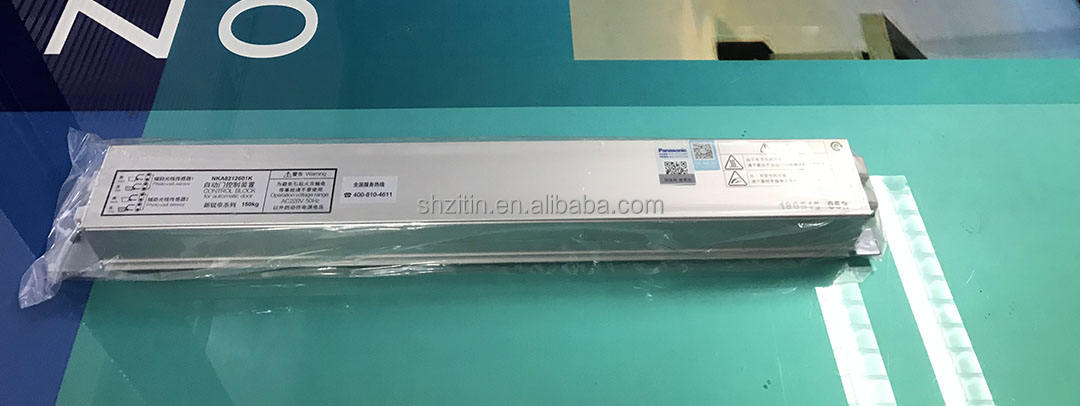

Controller module
It receives the detection signal of the sensor or other signal switch and drives the motor, through which the door body is
controlled to move in an appropriate manner. Two groups of auxiliary light sensor interfaces and auxiliary function interfaces are built in to improve the safety. It can be combined with the function expansion device, backup battery and electric lock to further improve the product versatility.
controlled to move in an appropriate manner. Two groups of auxiliary light sensor interfaces and auxiliary function interfaces are built in to improve the safety. It can be combined with the function expansion device, backup battery and electric lock to further improve the product versatility.

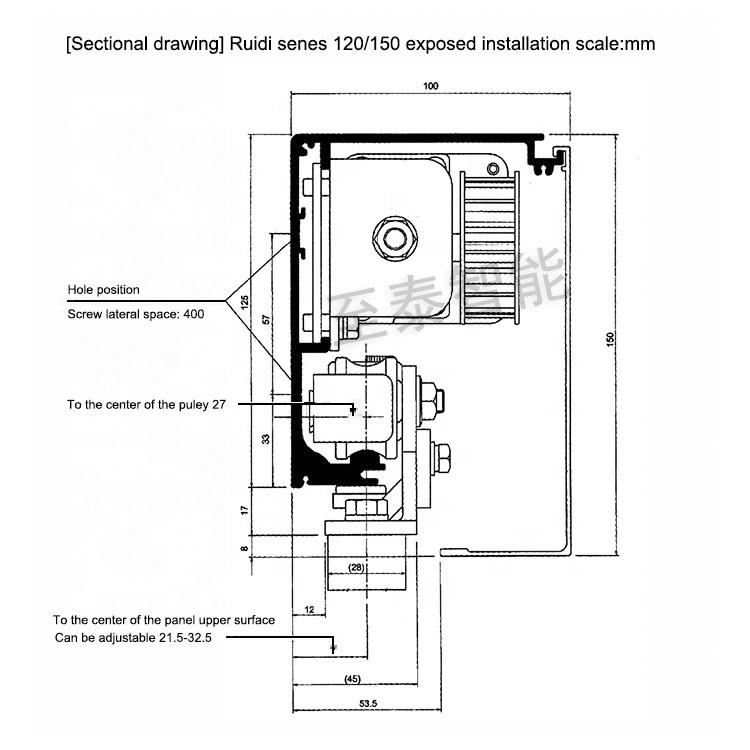

Engine box
It is made of lightweight, wear-resistant aluminum. It can be easily cut, and can be adjusted on site and installed in an optimal size even in various opening widths such as shops. With the basic unit length of 2.1 m, different numbers can be arranged according to single opening and double opening, which is convenient for transportation and also enables opening improvement.

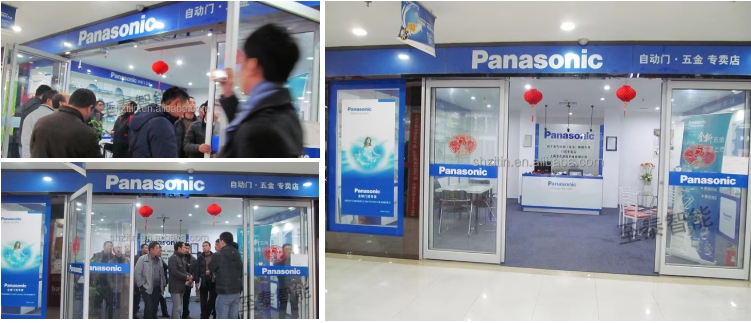

Pananasonic Automatic Door Specialty Store

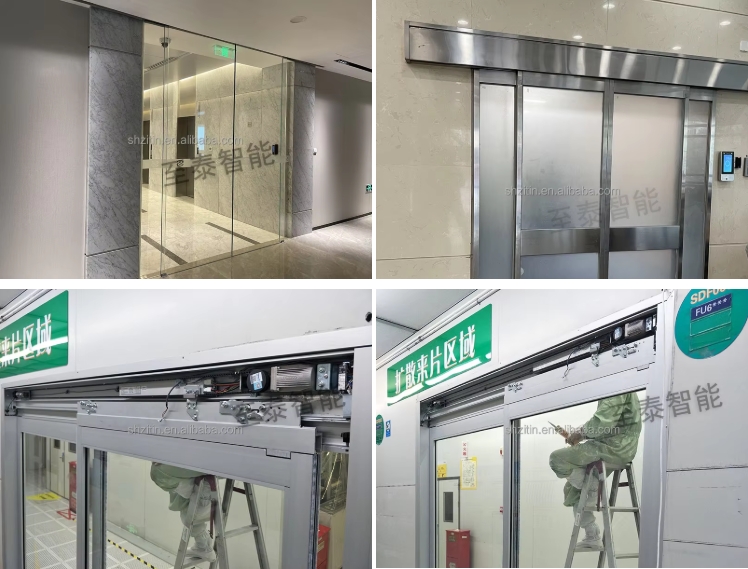

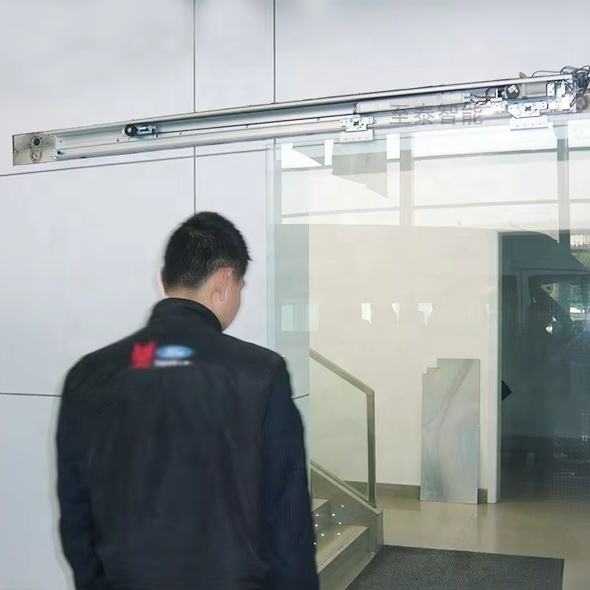

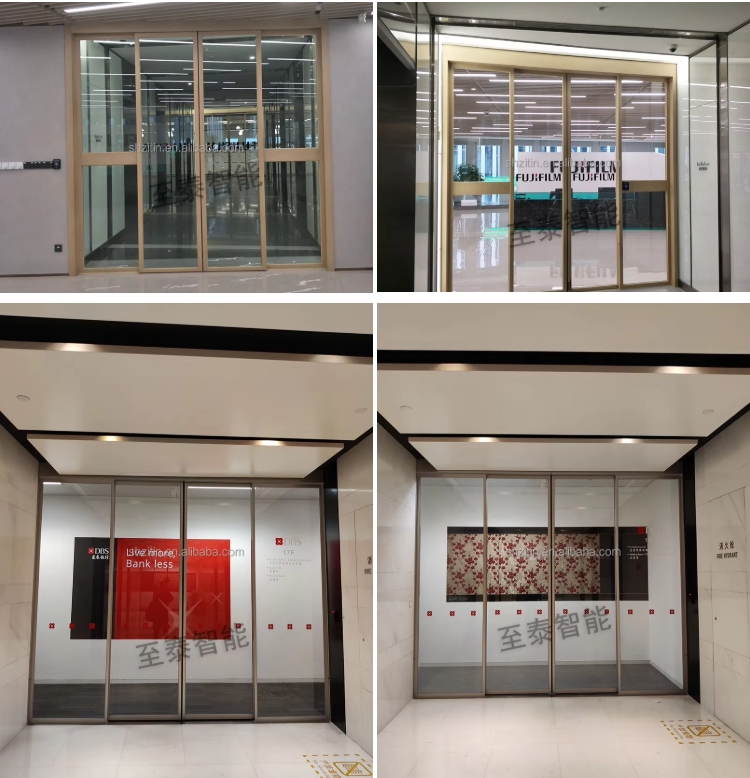

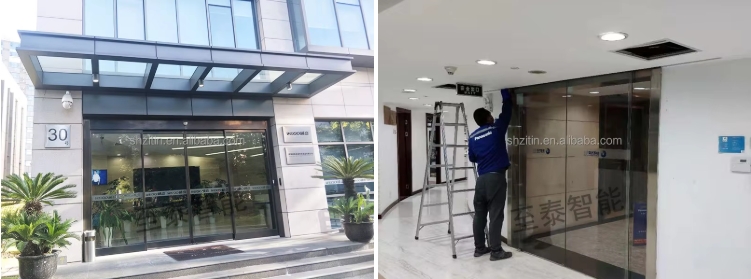

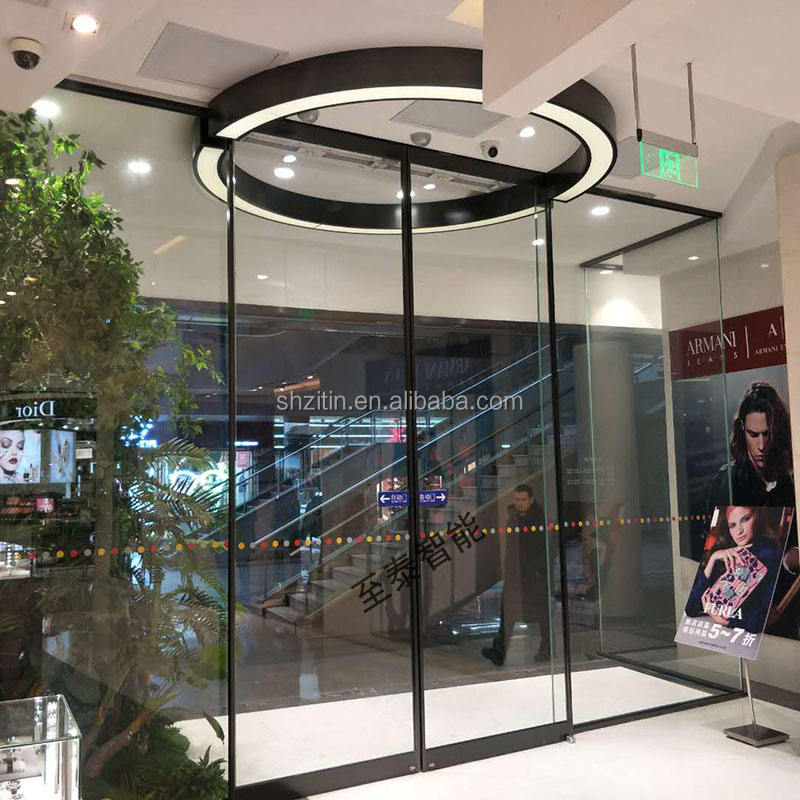

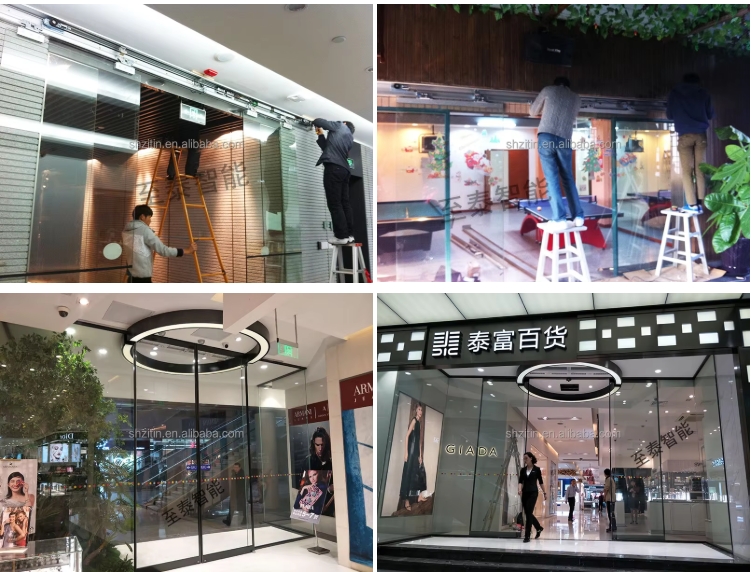

Effect display after installation
