Pananasonic Arc Series Automatic Curved Sliding Glass Door Operator Modern Design for Interior Hotel Use Finished Surface
6 products sold in last 14 hours
Selling fast! Over 5 people have in their cart
28 people are viewing this right now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Automatic Curved Sliding Door Series–Arc Door
|
PRODUCT PARAMETERS |
||
| Sliding door single leaf width | 600〜1, 754 mm | |
| Motor | DC24V 50W brushless motor | |
| Opening speed※ | 15〜38cm/s (adjustable) | |
| Closing speed※ | 10〜37cm/s (adjustable) | |
| Door opening time | 0〜9 s (adjustable) | |
| Half-open option | The full open stroke is adjustable between 20~90% A half-open connector NKA8103013 is required | |
| Manual opening/closing force | Below 70N | |
| Collision detection function | Reversing operation or reversing stop can be performed under collision detection (can be set by remote control) | |
| Supply voltage | AC200〜250V 50/60HZ | |
| Input current (AC220V) | Standby | 0. 09A (not including sensor) |
| Operation | 1.81A (not including sensor) | |
| Ambient temperature | -20〜+50℃ | |
| Basic action | Detection switch → door leaf opened → braking → slow down → stop (in opened state) → door leaf closed → braking → slow down → stop (in closed state) |
|
| ※The average speed at which 60 cm is moved from the fully closed or fully open position. | ||
FEATURES
Free curvature
A variety of arc types can be designed according to the site conditions.
Large diameter
The radius range can be 1.5-2.5 m.
Low noise
The overall structure is improved to further reduce the noise.
Energy saving and beautiful
The two arc doors are combined into a full circle to form an “air lock”, which effectively reduces the energy consumption of the air conditioner

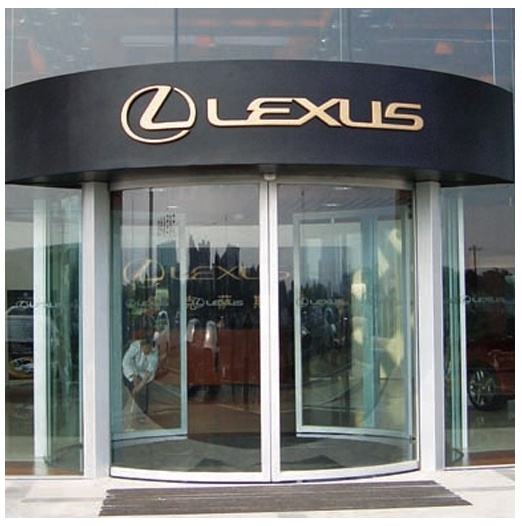

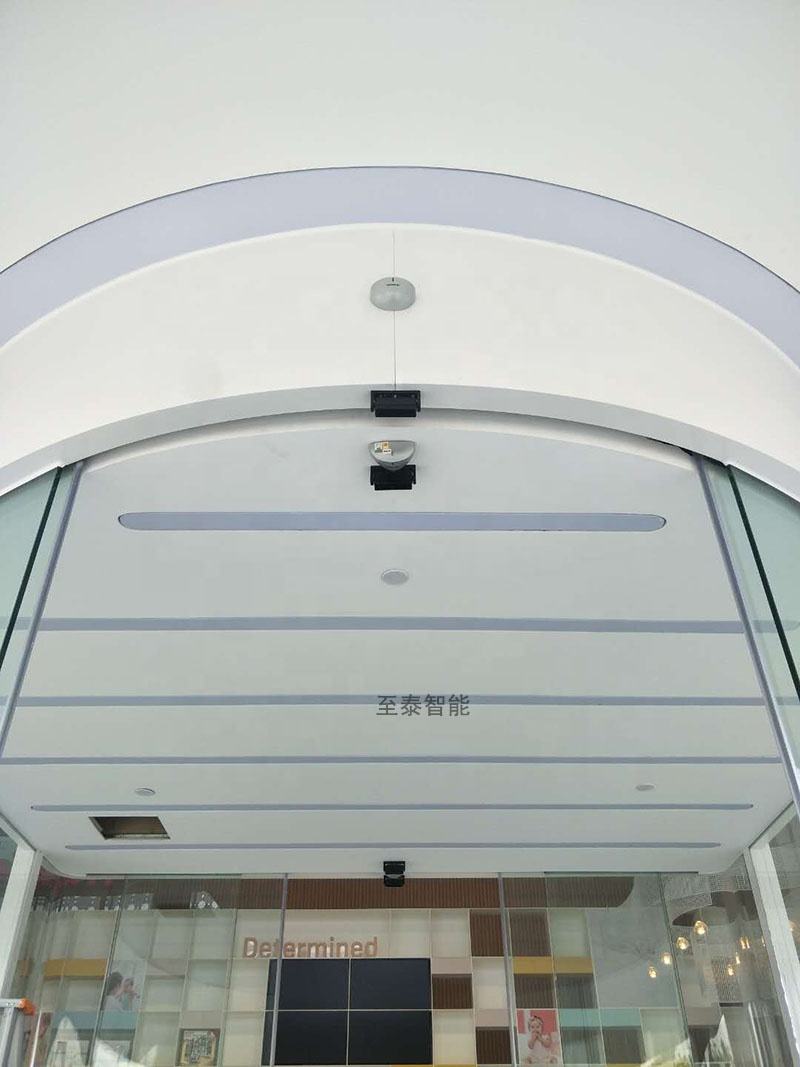

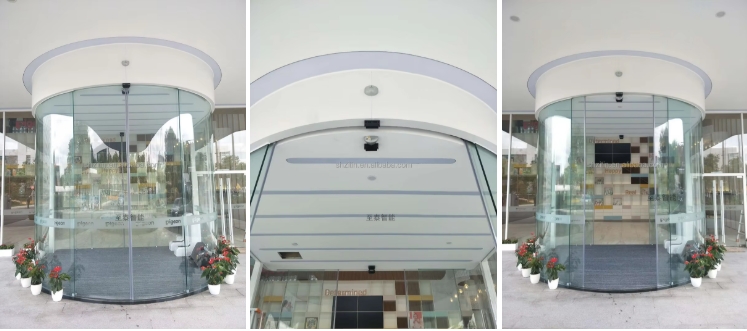

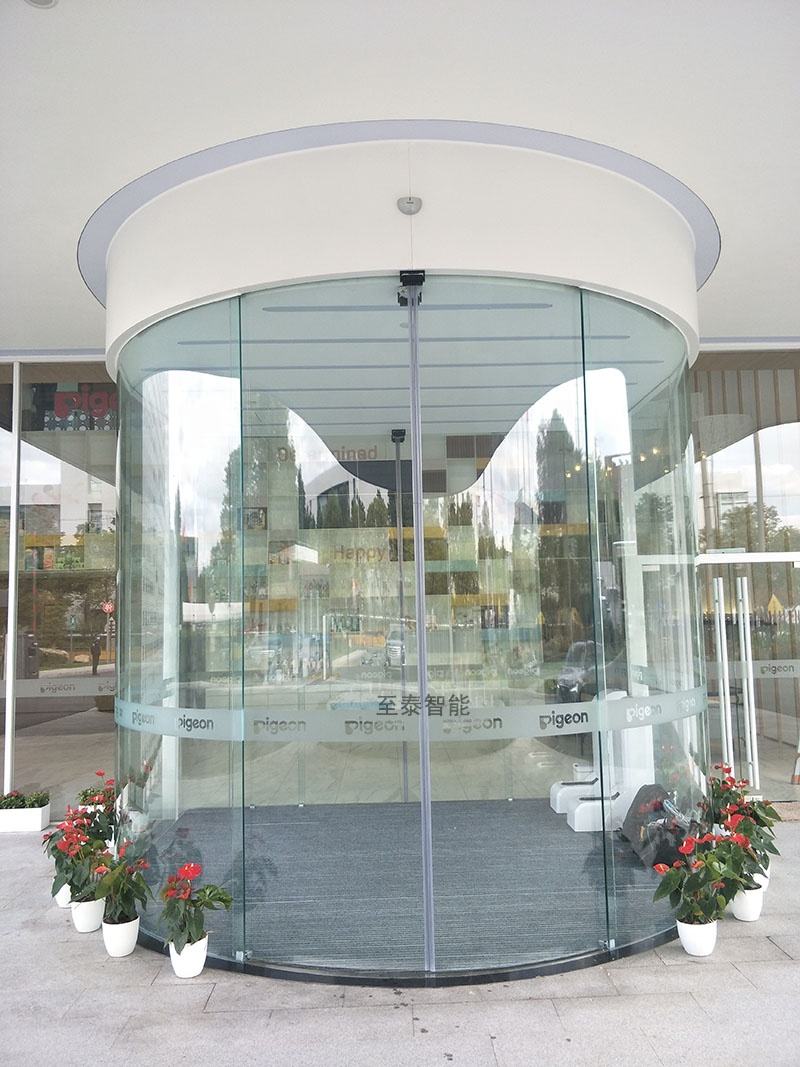

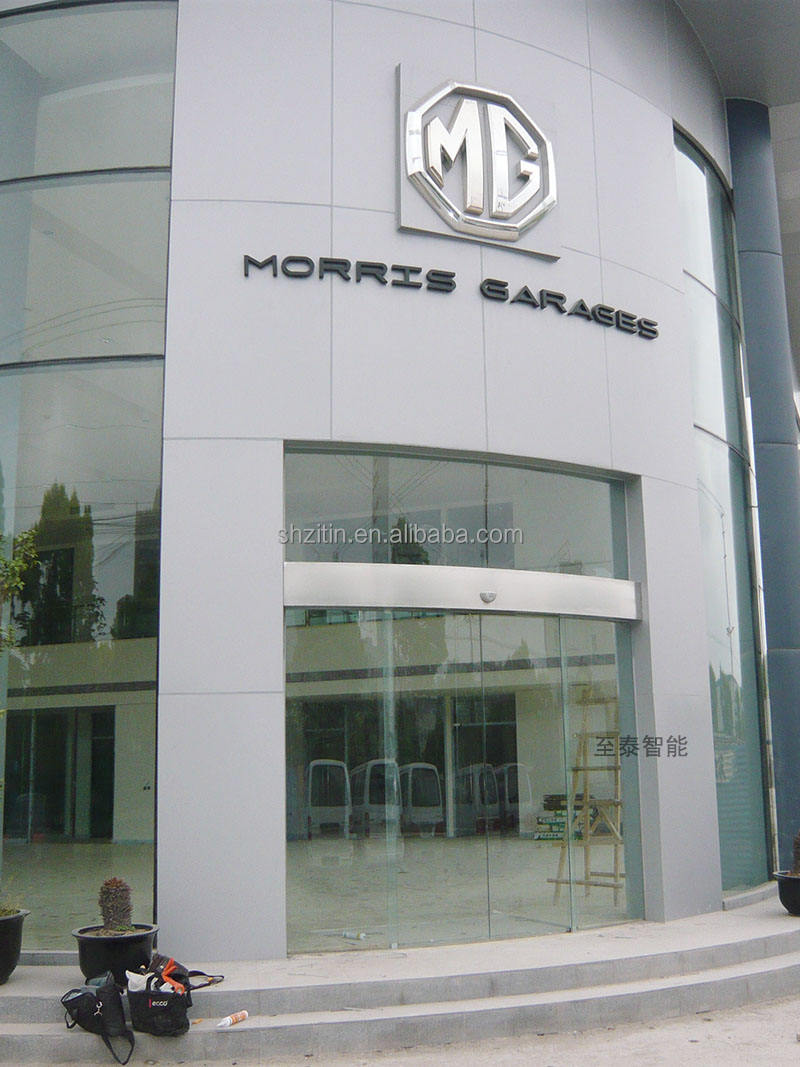

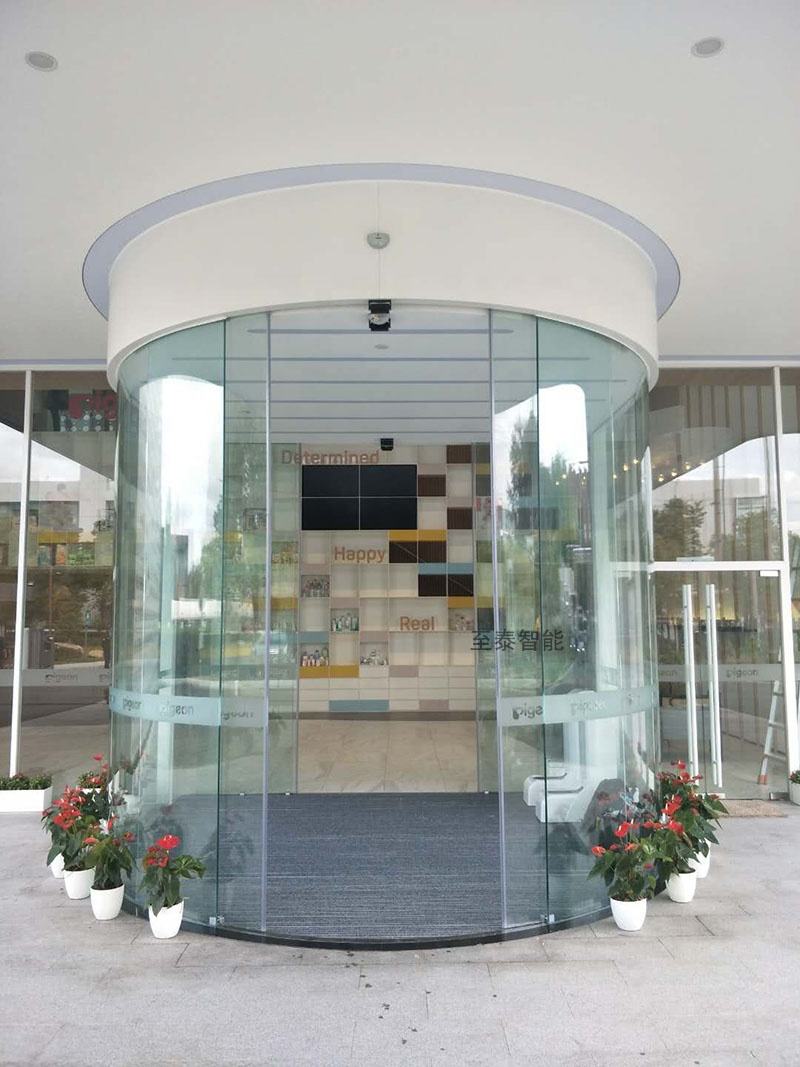

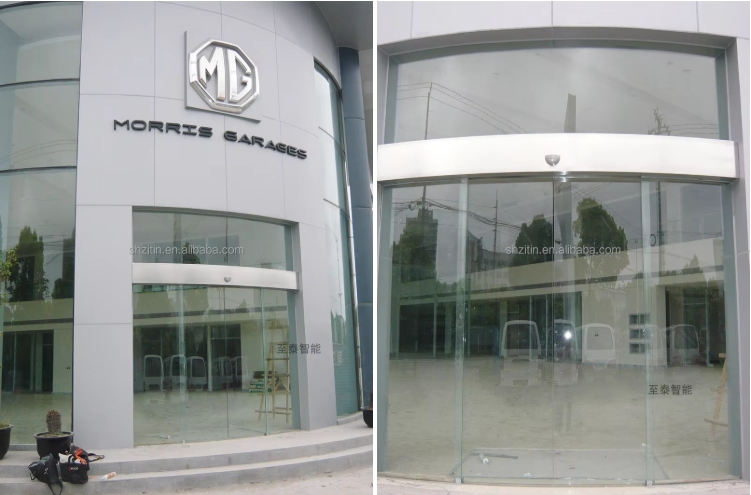

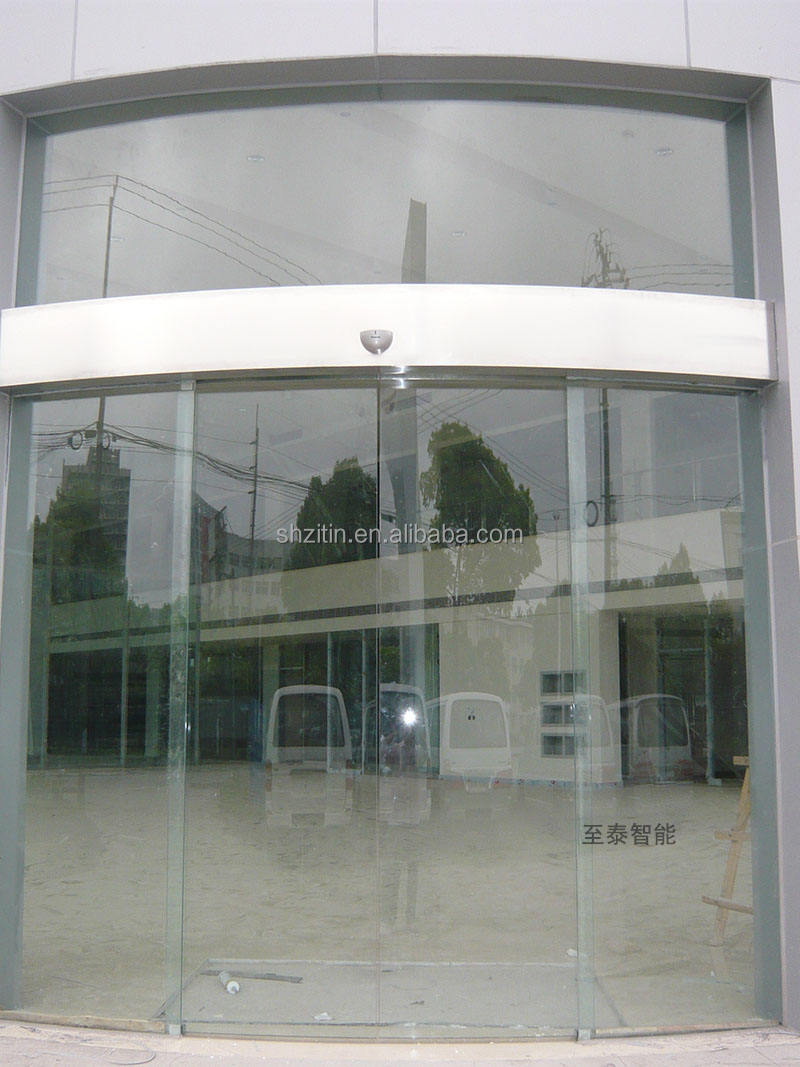

Effect display after installation
